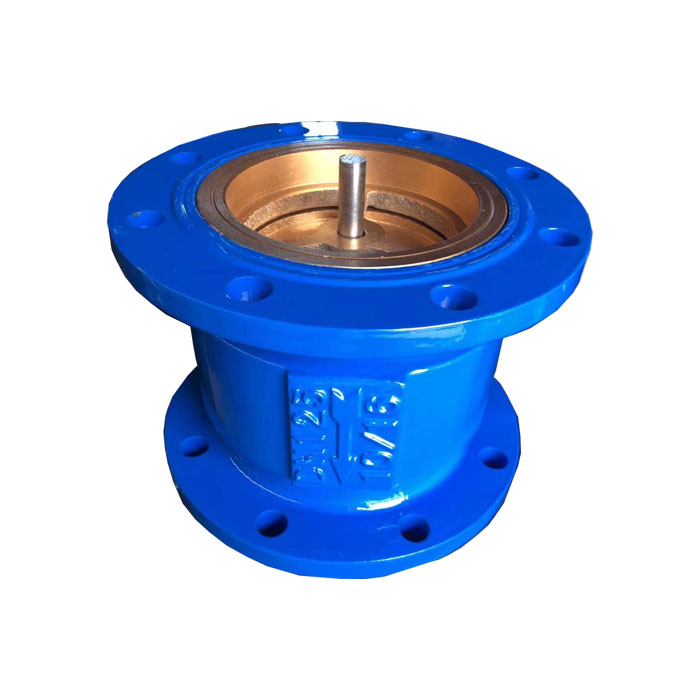

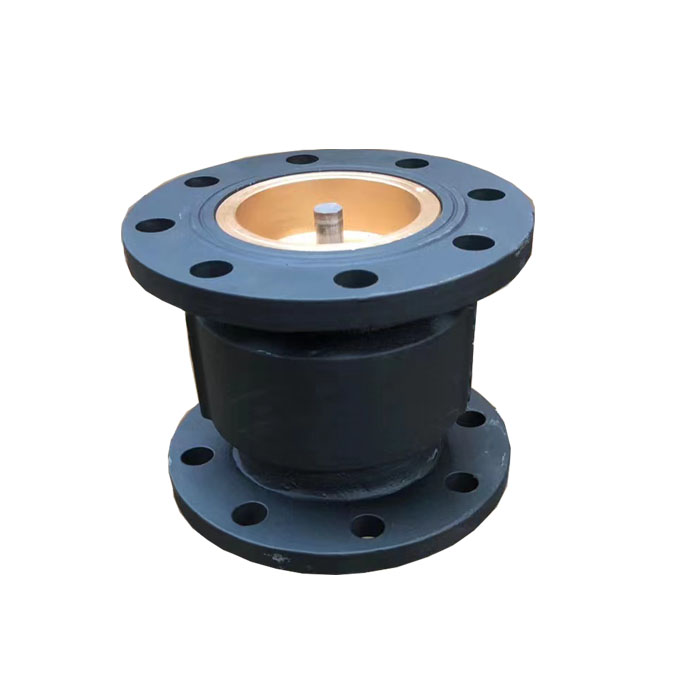

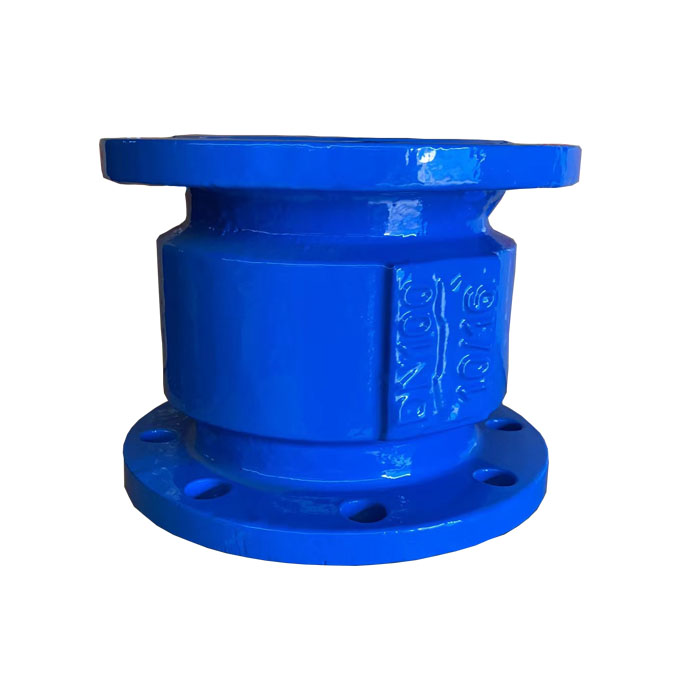

Muffler check valve

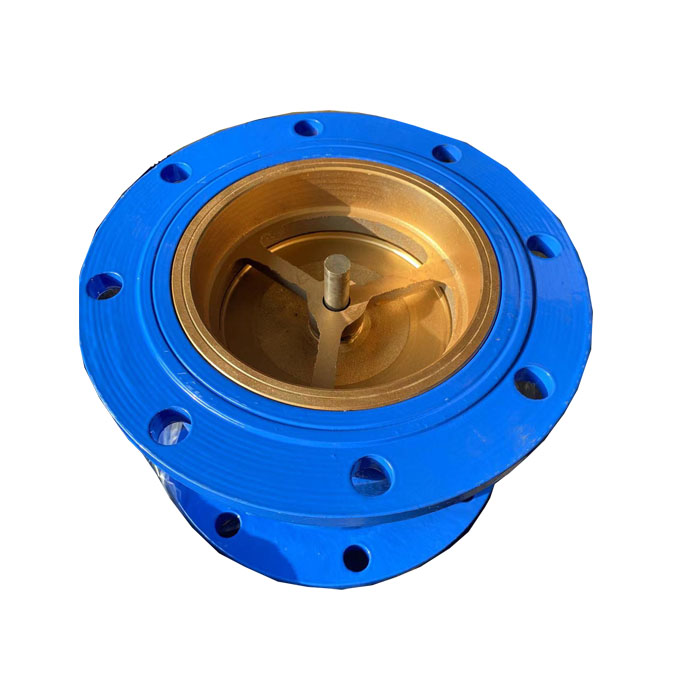

HC41X energy-saving silent check valve is suitable for water supply and drainage pipeline, the disc is guided by the central shaft at both ends of the import and export, flexible opening and closing, can be installed horizontally or vertically, the disc is loaded by spring, its quick closing can effectively eliminate the water hammer, good sealing performance, closed without noise. It has the advantages of small size, light weight, small fluid resistance, fatigue resistance, long life and so on.
HC41X energy saving muffler check valve technical parameters
Nominal pressure: 1.0~1.6MPa
Nominal diameter: 40~600mm
Applicable medium: water
Applicable temperature: 0~80℃
Test standard: GB/T 13927
